x-posted from GD
The ASI Report
Annexure III
Page 6- ( page 6-/350)
http://www.rjbm.nic.in/dvs/Final_Judgem ... %20III.pdf
The ASI Report is done in phases. Initial phase comprised of GPRS ( Ground Penetrating Radar Survey). ASI , on orders of HC in order date 1.8.2002 ( page 4/350 of ANN-III), conducted GPR Survey.
This was the decision of the HC on the basis of expert opinion of D Mandal who appeared on behalf of Sunni Waqf Board as pointed out in his book
"AYODHYA ARCHAEOLOGY AFTER DEMOLITION” has opined as follows:- “However, archeology can answer with a considerable degree of certainty, many questions about various past activities of people, for which material evidence is available. It is for this reason that archaeological research continues and is of importance. It is believed that sufficient archaeological material is available regarding the temple-mosque issue, pre-empting the need for further excavations at Ayodhya.” (page 16)
He further states that “Archaeology does not generally deal with super structures, as these seldom remain standing and awaiting excavation. All that usually remains of structures is their foundations. It may well be that demolition notwithstanding, the remains of the foundations of the walls of the mosque are still in situ.” (page 52) ( Page 2/350 of ANN-III)
HC Order
In the meantime before excavation, the Archaeological Survey of India will survey the disputed site by Ground-Penetrating Radar or Geo-Radiology and obtain the report with the aid including financial assistance by the Central Government of India.Dt. 01.8.2002
Report of GPR Survey
“1. In general terms, the main georadar features detected by the present survey are “anomaly alignments” across the main platform, north and south of the Sanctum Sanctorum extending to the Ram Chabutra area, the high amplitude “ringy sequence” towards the sough, and the mound structures to the east.
2. In their cross-section appearance and their areal pattern, the “anomaly alignments” may correspond to a wall foundation of some sort. In the Ram Chabutra area, the crossing patterns of those alignments and the different stratigraphic units from where they ((emerge)) suggest that they belong to successive construction periods rather than being contemporary to one another. As mentioned earlier, similar indications of successive structures are shown in other areas of the site such as shown on the example radar cross section 2 (Annex-D).
3. The ((ringy) and high amplitude)) sequence in the southern portion of Ram Chabutra area extends across the fences to the east to the main platform area to cover a rather large area. This sequence may be indicative of a flooring structure of some sort, possibly stone slabs if its origin is ancient.
4. A third type of buried structures covers the entire eastern boundary of the site. It consists of buried mound structures with some internal texture or structure indicative of collapsed material. Similar types of anomalies have been detected to the south-west area just before the terrain slopes down.
5. Many small discrete anomalies have been detected at various depths – from 0.5 to 5.5 meters. Some of those anomalies appear to line up in some directions but could not be detected on some survey lines between them. As such they have been referred to “discontinuous alignment” on the geophysical interpretation map of Annex. A. They may correspond to pillars alignment, broken up sections of wall foundations or fortuitous patterns of independent objects or natural features.
6. In the zones of reworked material or rubbles indicated on the map, little penetration was achieved as the signal was
severely scattered in those units. It is possibly that some of the trends or alignments stopping in those zones actually also
extend further.
7. In the slope area to the west, which is undulating, filled with rubbles and steeply dipping, only small anomalies were
detected at relatively shallow depths. They appear to line up somewhat as indicated on the map; however, the wider line
spacing and the poor data quality, on account of ground conditions in this area, due to bad coupling of the antenna
with the ground, makes this interpretation difficult. This area as explained earlier is a debris zone where heterogeneous
material was apparently dumped from the upper platform and the origin of those detected anomalies could also be debris.
8. We are also showing some indications on the map relative to the radar signal that are most probably related to
geological factors such as dipping layers, recent fill sequence and zones of higher soil conductivity. They are part of the
geophysical interpretation.
9. In conclusion, the GPR survey reflects, in general a variety of anomalies ranging from 0.5 to 5.5 meters in depth that could be associated with ancient and contemporaneous structures such as pillars, foundations walls slab flooring, extending over a large portion of the site. However, the exact nature of those anomalies has to be confirmed by systematic ground truthing, such as provided by archaeological trenching”.
In para 9 of the report it is clearly stated that the exact nature of the structure, pillars, foundation walls, slab flooring etc. can be confirmed by excavation.Learned counsel for the parties have filed objections to the report submitted by Tojo-Vikas International (Pvt.) Limited.
High Court , on the basis of this report, ordered Archaeological Survey by excavation.Parties were allowed to watch the Work and they could appoint one Archaeologist to watch the excavation work. Further ordered that Complete record be maintained and video-graphy and photography would be done. ( 3/351 of ANN-III order dated 1.8.2002)
Here we can draw the conclusion that trenching work was done only after GPRS Map and along the alignments indicated by the Map.They were not working blindly as might be presumed and indeed objected to by plaintiffs when it became clear that GPRS revealed possibility of structure.Some of the points highlighted here and confirmed later by trench work have been objected to by so called Experts.
I once again remind here that the case of defendent was that the DS was constructed on an existing structure and by demolishing it. While Plaintiffs Sunni Waqf Board and ors contended that it was on a parati land and there was no structure beneath it.
Introduction
The present excavation report deals with the excavation carried out by the Archaeological Survey of India during March-August 2003 at the disputed area of Rama-Janmabhumi-Babri Masjid located between Latitude 26º 47' 43.6” to 26º 47' 45.0” N and Longitude 82º 11' 31.1” to 82º 11' 39.9” E and around within the fifty feet limit.
The clay has been used for manufacturing bricks, tiles and pottery and “Inter-bedded with them also occur bands of kankar which is an irregular concretion of impure calcareous matter.......
This calcareous mater has been used thoroughly in the past for lime making as well as in the form of structural blocks of
buildings.
Excavation at the deputed site of Rama Janmabhumi-Babri Masjid was carried out by the Archaeological Survey of India from 12 March 2003 to 7 August 2003. During this period, as per the directions of the Hon'ble High Court, Lucknow, 82 trenches were excavated to verify the anomalies mentioned in the report of the Ground Penetrating Radar Survey which was conducted at the site prior to taking up the excavations. A
Summary of the Results
“Excavation at the deputed site of Rama Janmabhumi-Babri Masjid was carried out by the Archaeological Survey of India from 12 March 2003 to 7 August 2003. During this period, as per the directions of the Hon'ble High Court, Lucknow, 82 trenches were excavated to verify the anomalies mentioned in the report of the Ground Penetrating Radar Survey which was conducted at the site prior to taking up the excavations. A total number of 82 trenches along with some of their baulks were checked for anomalies and anomaly alignments. The anomalies were confirmed in the trenches in the form of pillar bases, structures floors and foundation though no such remains were noticed in some of them at the stipulated
depths and spots. Besides the 82 trenches, a few more making a total of 90 finally were also excavated keeping in view the objective fixed by the Hon'ble High Court to confirm the structures.
The result of the excavation are summarized as hereunder:- ( I will be excerpting only important points in the summary. For clarity I have indicated the period with each para as they appeared in the report body but not indicated before the para)
Period -I (NBPW)
The Northern Black Polished Ware (NBPW) using people were the first to occupy the disputed site at Ayodhya. During the first millennium B.C. Although no structural activities were encountered in the limited area probed, the material culture is represented by terracotta figurines of female deities showing archaic features, beads of terracotta and glass, wheels and fragments of votive tanks etc. The ceramic industry has the collection of NBPW, the main diagnostic trait of the period besides the grey, black slipped and red wares. A round signet with legend in Asokan Brahmi is another important find of this level. On the basis of material equipment and 14 C dates, this period may be assigned to circa 1000 B.C. To 300
B.C.
Period-II( Sunga ,second-first century B.C.)
The Sunga horizon (second-first century B.C.) comes next in the order of the cultural occupation at the site. The typical terracotta mother goddess, human and animal figurines, beads, hairpin, engraver etc. The stone and brick structure found from this level mark the beginning of the structural activity at the site.
Period-III( Kushan, first to third century A.D.)
The Kushan period (first to third century A.D.) followed the Sunga occupation. Terracotta human and animal figurines,
fragments of votive tanks, beads, antimony rod, hair pin, bangle fragments and ceramic industry comprising red ware represent the typical Kushan occupation at the site. Another important feature of this period is the creation of large sized structures as witnessed by the massive structure running into twenty two courses.
Period-III( Gupta fourth to sixth century A.D.)
The advent of Guptas (fourth to sixth century A.D.) did not bring any qualitative change in building activity although the period is known for its Classical artistic elements. However, this aspect is represented by the typical terracotta figurines and a copper coin with the legend Sri Chandra (Gupta) and illustrative potsherds.
Period-IV( Post-Gupta-Rajput period (seventh to tenth century A.D.)
During the Post-Gupta-Rajput period (seventh to tenth century A.D.), too the site has witnessed structural activity mainly
constructed of burnt bricks. However, among the exposed structures, there stands a circular brick shrine which speaks of its functional utility for the first time. To recapitulate quickly, exteriorly on plan, it is circular whereas internally squarish with an entrance from the east. Though the structure is damaged, the northern wall still retains a provision for pranala, i.e, waterchute which is distinct feature of contemporary temples already known from the Ganga-Yamuna plain.
Period-V(early medieval period eleventh-twelfth century A.D.)
Subsequently, during the early medieval period (eleventh-twelfth century A.D.) a huge structure, nearly 50 m in north-south orientation was constructed which seems to have been short lived, as only four of the fifty pillar bases exposed during the excavation belong to this level with a brick crush floor. On the remains of the above structure was constructed a massive structure with at least three structural phases and three successive floors attached with it.
Period VI (Early Medieval-Rajput level)
The architectural members of the earlier short lived massive structure with stencil cut foliage pattern and other decorative motifs were reused in the construction of the monumental structure having a huge pillared hall (or two halls) which is different from residential structures, providing sufficient evidence of a construction of public usage which remained under existence for a long time during the period VII (Medieval-Sultanate level-twelfth to sixteenth century A.G.).
It was over the top of this construction during the early sixteenth century, the disputed structure was constructed directly resting over it. There is sufficient proof of existence of a massive and monumental structure having a minimum dimension of 50 x 30 m in north-south and east-west directions respectively just below the disputed structure. In course of present excavations nearly 50 pillar bases with brick bat foundation, below calcrete block stopped by sandstone blocks were found. The pillar bases exposed during the present excavation in northern and southern areas also give an idea of the length of the massive wall of the earlier construction with which they are associated and which might have been originally around 60 m (of which the 50 m length is available at present). The centre point of the length of the massive wall of the preceding period which could not be excavated due to presence of Ram Lala at the spot in the make-shift structure. This area is roughly 15 x 15 m on the raised platform. Towards east of this central point a circular depression with projection on the west, cut into the large sized brick pavement, signify the place where some important object was placed. Terracotta lamps from the various trenches and found in a group in the levels of Periods VII in trench G2 are associated with the structural phase.
Period VII (Medieval-Sultanate level)
In the last phase of the period VII glazed ware sherds make their appearance and continue in the succeeding levels of the next periods where they are accompanied by glazed tiles which were probably used in the original construction of the disputed structure. Similarly is the case of celadon and porcelain sherds recovered in a very less quantity they come from the secondary context. Animal bones have been recovered from various levels of different periods, but skeletal remains noticed in the trenches in northern and southern areas belong to the period IX as the grave pits have been found cut into the deposition coeval with the late disputed structures and are sealed by the top deposit.
It is worthwhile to observe that the various structures exposed right from the Sunga to Gupta period do not speak either about their nature of functional utility as no evidence has come to approbate them. Another noteworthy feature is that it was only during and after Period IV (Gupta level) onwards upto Period IX (late and post Mughal level) that the regular habitational deposits disappear in the concerned levels and the structural phases are associated with either structural debris or filling material taken out from the adjoining area to level the ground for construction purpose. As a result of which much of the earlier material in the form of pottery, terracottas and other objects of preceding periods, particularly of Period I (NBPW level) and Period III (Kushan level) are found in the deposits of later periods mixed along with their contemporary material.
The area below the disputed site thus, remained a place for public use for a long time till the Period VIII (Mughal level) when the disputed structure was built which was confined to a limited area and population settled around it as evidenced by the increase in contemporary archaeological material including pottery. The same is further attested by the conspicuous absence of habitational structures such as house-complexes, soakage pits, soakage jars, ring wells, drains, wells, hearths, kilns or furnaces etc. from Period IV (Gupta level) onwards and in particular from Period VI (Early
Medieval-Rajput level) and Period VII (Medieval-Sultanate level).The site has also proved to be significant for taking back its antiquarian remains for the first time to the middle of the thirteenth century B.C. (1250 ± 130 B.C.) on the analogy of the C14 dates.
The lowest deposit above the natural soil represents the NBPW period and therefore the earliest remains may belong to the thirteenth century B.C. Which is confirmed by two more consistent C14 dates from the NBPW level (Period I), viz. 910 ± 100 B.C. And 880 ± 100 B.C.) These dates are from trench G&. Four more dates from the upper deposit though showing presence of NBPW and associated pottery are determined by Radio-Carbon dating as 780 ± 80 B.C., 710 ± 90 B.C., 530 ± 70 B.C. And 320 ± 80 B.C. In the light of the above dates in association with the Northern Black Polished Ware (NBPW) which is generally accepted to be between circa 600 B.C. To 300 B.C. it can be pushed back to circa 1000 B.C. And even if a solitary date, three centuries earlier is not associated with, NBPW, the human activity at the site dates back to circa thirteenth century B.C. on the basis of the scientific dating method providing the only archaeological evidence of such an early date of the occupation of the site.
The Hon'ble High Court, in order to get sufficient archaeological evidence on the issue involved “whether there was
any temple/structure which was demolished and mosque was constructed on the disputed site” as stated on page 1 and further on P. 5 of their order dated 5th March, 2003, had given directions to the Archaeological Survey of India to excavate at the disputed site where the GPR Survey has suggested evidence of anomalies which could be structure, pillars, Foundation walls, slab flooring etc. which could be confirmed by excavation.

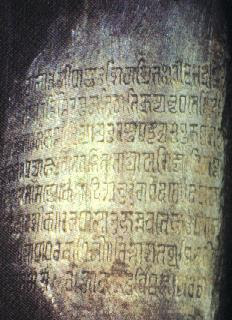

Now, viewing in totality and taking into account the archaeological evidence of a massive structure just below the disputed structure and evidence of continuity in structural phases from the tenth century onwards up to the construction of the disputed structure along with the yield of stone and decorated bricks as well as mutilated sculpture of divine couple and carved architectural members including foliage patterns, amalaka, kapotapali doorjamb with semi-circular pilaster, broken octagonal shaft of black schist pillar, lotus motif, circular shrine having pranala (waterchute) in the north, fifty pillar bases in association of the huge structure, are indicative of remains which are distinctive features found associated with the temples of north India.”
After going through the report and considering the objections raised bt the rival parties HC ordered that the report would be subject to objections and evidence of the parties. ( Order dated 3.2.2005 of HC page 49/350 of ANN-III)
Some of the extracts from the report
VOl 1
http://www.rjbm.nic.in/sa/Judgment%20RJ ... vol-01.pdf
(page 243/251of the Vol1)
interestingly, after excavating five levels of the structure, each comparing a flat surface of lime-surkhi mortar having calcrete blocks below it, a squarish block of the same material component but with well polished surface
measuring 1.55 m in north-south x 1.48 m in east-west orientation protruding out of the fifth level was found and
after cutting the fifth level a chamber was noticed over whose projecting western part the above mentioned block
was found fixed, probably indicating some place of importance. Towards north of the 'Ram-Chabutra' the floor
of the outer courtyard of the disputed structure within the outer enclosure was exposed having a platform attached to
it in the western side which was approached through a step. Remains of brick structures, floors and working levels
below it were encountered. It seems that the area, particularly in the north eastern side of the disputed structure was low lying and therefore, it was filled up with debris to nearly 4 metres deep to reclaim the part for eastern extension. Stratified deposits were found below this filing which belong to the early two or three centuries of the Christian era
(page 244/251of the Vol1)
The appearance so far of eleven squarish of circular structural bases having brickbats at the base with two
rectangular blocks of calcrete stone over three or four courses of brickbats are significant as some of which are
sealed directly by the original floor attached to the disputed structure. The same type of the structural bases, with a sandstone block at their top having encasing of sandstone slabs/pieces on its four sides, were found in the northern area also, where eight trenches have been opened up so far. An interesting feature of these structural bases is that each one of it is located at a distance of 3.30 to 3.50 m 245(from centre to centre).
Periodization followed by ASI
ANN-III
page 28/350
http://www.rjbm.nic.in/dvs/Final_Judgem ... %20III.pdf
5. The total deposit of about 10.80 m thick, was divided into 9 cultural periods namely (1) Period-I (Northern Balck Polished Ware Level referring to period prior to 200 B.C.) (2) Period-II (Sunga Level referring to 200 B.C. to 100 A.D.) (3) Period-III (Kushan Level referring to 100-300 A.D. (4) Period-IV (Gupta Level 400-600 A.D. (5) Period-V (Post Gupta Rajpur Level 700-1000 A.D. (6) Period-VI (early Medieval-Pre Sultanate Level 1100-1200 A.D. (7) Period-VII (Medieval Level 1200 to the beginning of 1600 A.D., (8) Period-VIII (Mughal Level and (9) Perood-IX (Late and Post Mughal Level).
ANN-III
page 29/350
http://www.rjbm.nic.in/dvs/Final_Judgem ... %20III.pdf
The Period-V (Post Gupta-Rajpur Level) is said to have yielded a “Subsidiary Circular Shrine from baulk of Tr. Nos. E 8 and F 8 (figure 24 and 24-A of Vol.1), which according to ASI was built around 1000 A.D. And could be associated with Lord Shiva, as the shrine had water-parashute (parnala) towards north, resembling with chirenath brick temple of Shrawasti (U.P.), circular Shiva Temples near Rewa in M.P. At chardreha and mason, belonging to 950 A. D. and temples at Kurari and Tindauli in District Fatehpur
The ASI says on page 41 of Vol. 1 that Period-VI, evidenced a massive north-south oriented brick wall (No. 17), markedly inclined towards east) in Tr. No.D-7, E-2, E-1 and ZF-1, possibly built around 1100-1200 A.D. Period-VII is said to have evidenced existence of a massive wall-16 in north-south orientation having length of about 150 feet, and also pillar bases towards east of this wall. The ASI says that a column based massive structure might have been raised on wall-16 and the 50 pillars, bases of which were noticed. This wall-16, which according to ASI was built around the end of 12th Century A.D., was having niches (Mehrab) facing towards east and was above the level of wall-17 (page-68). In sub-period-B of Period -VII there was found “a circular depression”(ghata shaped) (see plate 67) made by cutting the large brick pavement having the diameter of 1.05 m with a rectangular projection of 0.46 x 0.32 m towards west in the centre of the pavement, (if the central point was calculated on the basis of extent of length of wall-16 or wall-17 and longitudinal length of the alignment of pillar bases from north to south) suggesting as if the place was of importance (see page-42 of Report).
Southern foundation wall-6 of disputed structure was found, resting over two pillar bases of earlier period (pillar base No. 34, 35, plate No.30 and also see page 52 of Vol.1). This wall-6 had three courses of clacrete blocks. It was taking turn at south-east corner forming wall-7 of eastern side of southern chamber of structure-3. Wall-7 in front of southern chamber of the disputed structure-3, rested over three pillar bases of the earlier period (see figure-6 of Vol.I). Width of this Wall-7 was 1.54 m with entrance to southern chamber having a gap of 2.65 m. Wall-8 that is northern
wall of southern chamber of the disputed structure was 8.3 m. in length with an entrance to central chamber. The ASI could not probe into the site of central chamber, due to its close proximity to makeshift temple of Ram Lalla.
